If you’re a homeowner with a retaining wall, you’re likely aware of its vital role in protecting your property. But what happens when your retaining wall shows signs of stress or failure? The solution might involve tiebacks and anchors. In this article, we’ll explore how these components can save your retaining wall and why they’re essential for maintaining the structural integrity of your home.
What Purpose Does Retaining Wall Tiebacks And Anchors Serve?
Retaining walls are designed to hold back soil and prevent erosion, but over time, pressure from the earth or over-saturation of the soil can cause these walls to bow or lean. This is where tiebacks and anchors come into play. These devices provide additional support by connecting the wall to stable ground behind it. This helps to counteract the forces pushing against the wall, ensuring it remains upright and functional.
A retaining wall can fail without tiebacks and anchors, leading to soil erosion, property damage, and even safety hazards. Tiebacks and anchors are particularly crucial for retaining walls that support large loads or are situated on slopes where the pressure from the soil is most intense.
What Is The Difference Between A Tieback And An Anchor?
While both tiebacks and anchors serve to stabilize retaining walls, they function differently.
A retaining wall tieback is typically composed of steel cables or rods installed at an angle, extending from the wall into the stable soil or rock to help counteract the lateral forces exerted by the soil. This connection aids in stabilizing the wall, preventing it from bending or bulging under pressure. Tiebacks are especially useful when the wall is subject to significant loads or when space constraints limit the use of other stabilizing methods.
A retaining wall anchor is usually installed with a tieback, so you may often hear them called tieback anchors. These devices are embedded deep into the earth and connect to a plate or similar structure that evenly distributes the load. By anchoring the wall securely, retaining wall anchors help resist movement and prevent failure caused by soil pressure or erosion. Their installation is crucial for walls facing particularly heavy loads or those located on steep inclines, enhancing the overall structural integrity of the retaining wall system.
Tiebacks are often used in situations where deep soil stabilization is required. They can be adjusted for tension, offering flexibility in their application. Anchors are typically easier to install and use in various soils and conditions. Knowing the difference between these two can help you understand which solution might be better for your retaining wall.
Types Of Tiebacks And Anchors
There are several types of tiebacks, each suited to different conditions and requirements:
- Grouted Tiebacks: Grouted tiebacks involve drilling a hole into the ground, inserting a steel rod, and then filling the hole with grout. This type of tieback creates a strong bond with the surrounding soil, making it ideal for high-load applications. However, the installation process is more complex and requires specialized equipment.

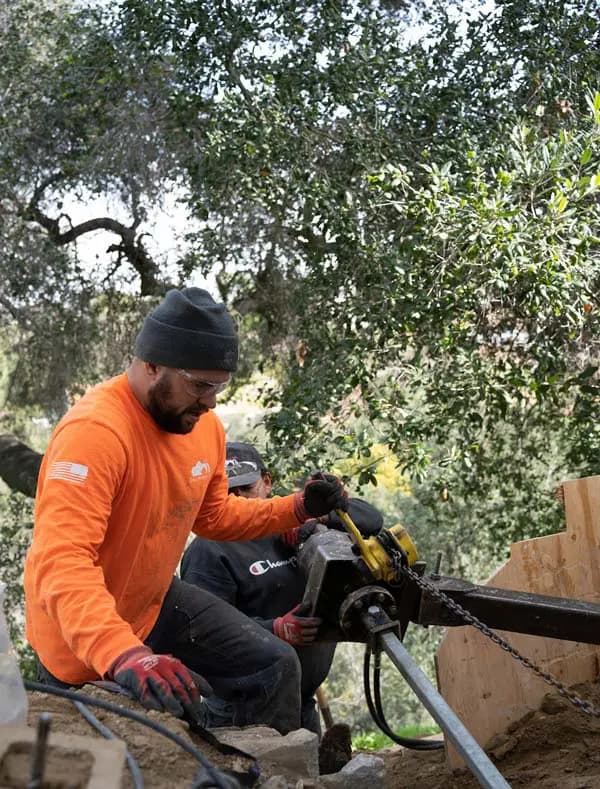

- Helical Tieback Anchors: These anchors consist of a steel shaft with helical plates welded to it, resembling a screw. During installation, the anchor is rotated into the ground until it reaches a suitable depth, where the helical plates engage the surrounding soil. This design allows for efficient load transfer and minimizes the risk of soil displacement. Their installation process is straightforward and often requires less excavation than other types, making them an excellent option for residential retaining walls facing moderate to high lateral pressures.

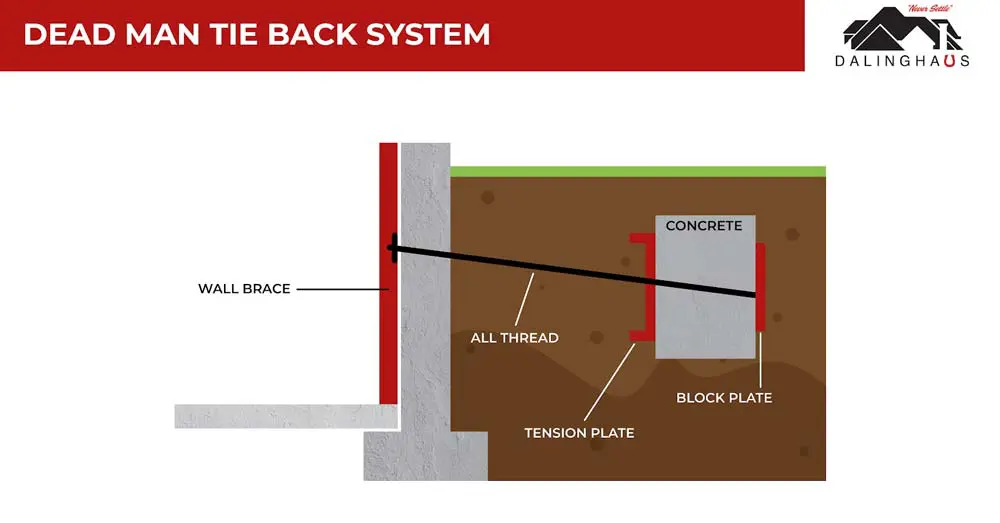

- Deadman Anchors: Deadman anchors use large, buried objects (called deadmen) to provide anchorage. These can be concrete blocks or heavy timbers. Cables or rods connect the deadman to the retaining wall, pulling it back into place. This method is traditional but can be labor-intensive and less flexible than other options.

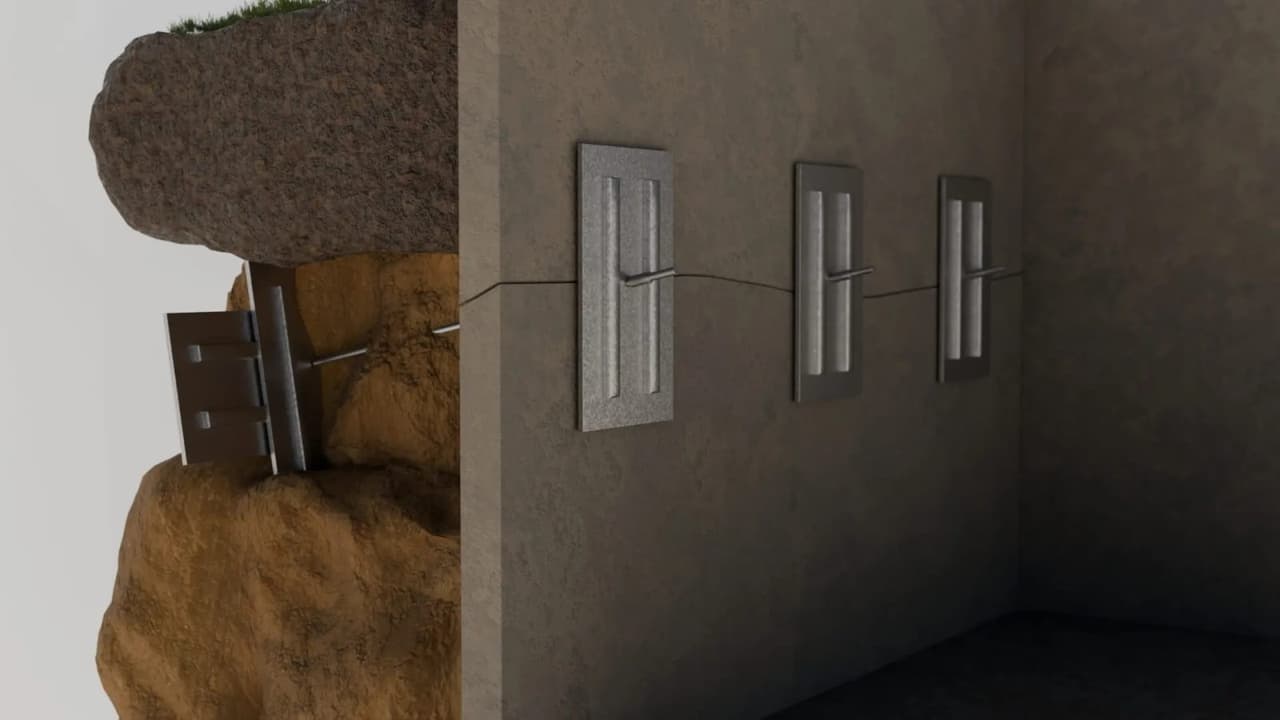

- Plate Anchors: Plate anchors involve placing a large steel plate behind the wall, connected to a rod or cable that extends into the soil. The plate distributes the load over a larger area, providing strong and stable support. This method is particularly effective for walls experiencing severe bowing or leaning.
- Earth Anchors: Earth anchors are composed of a shaft or rod driven deep into the soil and then tensioned to hold the wall in place. They’re highly effective in soft soils or situations where other types of anchors might not hold as well. Earth anchors can be used for both temporary and permanent stabilization projects.
Signs Your Retaining Wall Needs Repairs
Recognizing when your retaining wall requires maintenance is crucial for preventing more significant and costly damage. Here are some key signs to look out for:
- Visible Leaning or Bowing: If your retaining wall is leaning or bowing, it indicates it’s experiencing excessive pressure and needs additional reinforcement. This situation often arises from soil saturation due to heavy rain or improper drainage, or it may stem from inadequate construction methods used during its initial build. Addressing these issues promptly can help prevent a complete structural failure.
- Cracks and Gaps: The appearance of cracks in the wall or gaps between the wall and the surrounding soil is a strong sign of movement, which can lead to potential collapse. These cracks can allow water to seep through, worsening the underlying problems and leading to further deterioration. Regular inspections and repairs are essential to ensure the integrity of the wall.
- Water Accumulation: If you observe water pooling at the base of your retaining wall, this may indicate poor drainage conditions, significantly increasing the soil pressure behind the wall. Over time, this excess pressure can lead to shifting and damage. Implementing proper drainage systems, such as weep holes or drainage pipes, is vital to manage water flow effectively and prevent these issues from escalating.
By paying attention to these signs and taking timely action, you can extend the life of your retaining wall and maintain the stability of your landscaping. Regular inspections and proactive maintenance are vital to safeguarding your investment and ensuring your outdoor space remains safe and visually appealing.
Call The Professionals
When it comes to repairing retaining walls, professional intervention is critical. Retaining wall repair, especially involving tiebacks and anchors, is not a DIY project. The complexity and risk involved require specialized knowledge and equipment. Attempting to fix it yourself can lead to further damage or even injury. Professionals have the expertise to assess the condition of your retaining wall and recommend the best course of action. They can determine the appropriate type of tieback or anchor for your specific situation, ensuring the repair is effective and long-lasting.
The first step in resolving any retaining wall issue is to schedule an inspection with a qualified professional. They will evaluate the wall, identify the underlying problems, and provide a detailed repair plan. If you live in Southern California, Nevada, or Arizona, Dalinghaus Construction is here to help you construct and repair your retaining wall. By acting early, you can prevent further deterioration and protect your property.
