How Much Foundation Movement Is Acceptable?

Table of Contents

The foundation of your home is pivotal to its stability and overall health. While any movement in your foundation can understandably cause concern, it’s important to recognize that most foundations will experience some movement over time. But how much movement is considered acceptable, and when should you start to worry?

In this blog post, we’ll explore the nuances of foundation movement, the factors that influence it, how to distinguish between normal and problematic shifts, and the steps you can take to monitor and repair any foundation issues.

What Is Foundation Movement?

Foundation movement refers to the shifting or settling of a building’s foundation over time. This movement is a natural process influenced by soil composition, moisture, and the building’s weight. While all foundations settle to some degree, how they settle is crucial to the structure’s overall stability.

Uniform Settlement

Uniform settlement occurs when the foundation settles evenly across its entire footprint. This type of settlement is generally less problematic because the structure remains level and is less likely to experience significant damage. Uniform settlement often results from consistent soil conditions and uniform moisture levels beneath the foundation.

Foundation Settlement

Differential Settlement

In contrast, differential settlement happens when different foundation parts settle at different rates. This inconsistency can cause cracks in the walls, sloping floors, and even structural failure. Variations in soil conditions, poor drainage, or uneven load distribution typically cause differential settlement. Differential settlement is more concerning than uniform settlement because it can severely impact the structure’s stability.

Why Do Foundations Move?

Foundations are essential for maintaining a building’s stability and structural integrity. However, various factors can cause a foundation to move, jeopardizing the structure’s safety and longevity. Homeowners and property managers can address and prevent these issues by understanding the causes of foundation movement.

  • Environmental Changes: Environmental changes, like fluctuations in temperature and moisture levels, can lead to soil expansion or contraction. These shifts can pressure a foundation, causing it to move or settle over time.
  • Improper Soil Compaction: Proper soil compaction is crucial before laying a foundation. If the soil is not compacted adequately, it may settle unevenly under the structure’s weight, leading to movement in the foundation.
  • Under Slab Leaks: Leaks beneath the slab from plumbing or irrigation systems can erode or swell the soil, affecting the foundation’s stability. Excess moisture can result in differential settlement and uneven foundation movement.
  • Soil Conditions: Soil conditions vary in their ability to support loads and respond to moisture changes. For example, clay-rich soils, classified as moderately to highly reactive, can expand when wet and contract when dry. This fluctuation causes the foundation to shift as the soil’s moisture content changes. Non-reactive soils, like sand and rock, experience minimal ground movement, while extremely reactive soils can exhibit significant movement under varying moisture conditions. Understanding these classifications helps in predicting how different soils will impact foundation stability.
  • Natural Disasters: Natural disasters like earthquakes, floods, or landslides can lead to sudden and severe foundation movement. These events can shift the ground beneath a structure, causing significant damage and instability.
  • Poor Drainage: Poor drainage around a building can lead to water pooling near the foundation. This excess moisture can weaken the soil, resulting in uneven settling and compromising the foundation’s stability.
  • Tree Roots And Plants: Tree roots and large plants can grow beneath a foundation, applying pressure and causing movement. Additionally, roots can draw moisture from the soil, leading to uneven settlement.
  • Extensive Digging: Extensive digging near a foundation, whether for construction, landscaping, or utilities, can disturb the soil’s stability. This disruption can result in shifting or settling, impacting the foundation’s integrity.
  • Soil Slips On Hillsides: For structures on or near hillsides, soil slips or landslides can cause significant foundation movement. Shifting soil can undermine the foundation, leading to uneven settling and structural issues.
  • Negligent Construction: Negligent construction practices, such as using substandard materials or incorrect building techniques, can lead to foundation problems. The foundation is more vulnerable to movement and damage without proper structural integrity.

How Much Foundation Movement Is Acceptable?

Foundations typically undergo a “settling in” phase lasting 12 to 24 months, during which landscaping, yard work, and irrigation systems are installed.

Guidelines For Slab-On-Ground Foundations

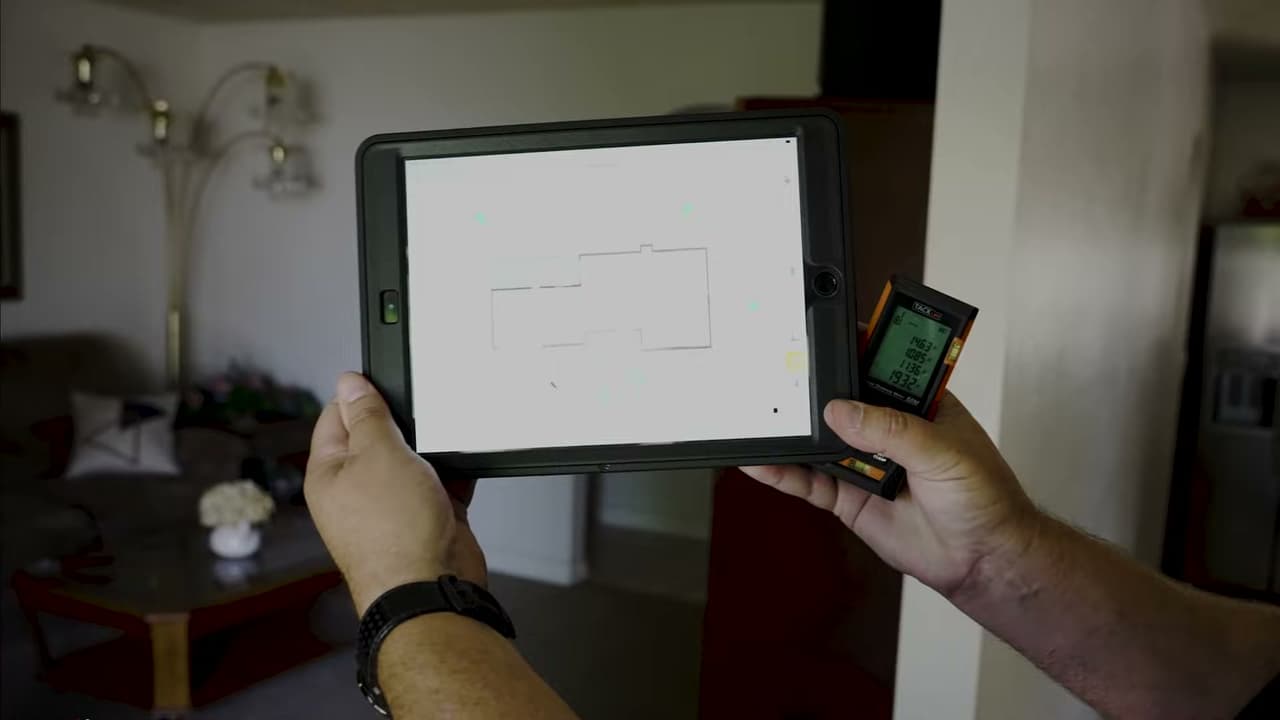

According to the Post-Tensioning Institute, a floor levelness or elevation survey measures levelness, deflection, and tilt to assess foundation performance. Evaluating these factors requires engineering judgment to discern whether differences in elevation stem from original construction or foundation movement. Comparing results from two surveys offers the most accurate measure of movement.

  • Tilt: Tilt is a key factor in evaluating foundation performance. Generally, an allowable tilt is up to 1%, which translates to 1 inch of tilt per 100 inches of length.
  • Flexural Deflection: The acceptable deflection is L/360, meaning a deflection of 1 inch throughout 360 inches. It’s important to note that performance deflection criteria are not directly comparable to design deflection criteria. Foundations are designed with specific stiffness criteria based on the materials used, and while stiffness coefficients relate to deflection, they are not directly comparable to the L/360 criteria.

Foundations are not always perfectly level. Typical construction tolerances allow for a variance of up to 3/4 inch, resulting in an acceptable elevation difference of up to 1 1/2 inches.

Guidelines For Other Types Of Foundations

For other foundation types, the general guidelines include:

  • Vertical Movement: A vertical foundation movement of 1/2 inch to 1 inch over a 20-foot span is typically acceptable.
  • Lateral Movement: Lateral (side to side) movement should ideally not exceed 1/4 inch.

However, these are general guidelines, and acceptable movement may differ based on construction materials, design specifications, and local conditions.

When To Worry

If your home shows signs of excessive foundation movement, it’s a cause for concern. Even if the movement is within acceptable limits, persistent or worsening symptoms can indicate a problem. Expanding cracks and doors indicate real-time shifts in your home or commercial property’s foundation. In such cases, it is essential to contact a foundation repair expert.

Signs Of Foundation Movement

The foundation of your home is crucial for maintaining its structural integrity. When foundation issues arise, they can lead to significant problems.

Here are some common signs that indicate foundation movement:

  • Misaligned Windows and Doors: If you notice that windows and doors no longer close correctly or appear misaligned, it may be a sign of foundation movement. This occurs when settling or shifting disrupts the structural alignment, causing frames to warp. Symptoms include windows that stick, gaps around door frames, and doors that swing open or shut independently.
  • Cracks in Walls, Floors, or Tiles: Unexpected cracks in walls, floors, or tiles can indicate foundation movement. Although these cracks might seem cosmetic initially, they often signal more serious underlying issues. Common areas for these cracks include basement floors, tile floors, and both interior and exterior walls.
  • Gaps Between Walls, Floors, or Ceilings: Spaces forming between walls, floors, or ceilings can signify foundation movement. Such gaps suggest that parts of your structure shift apart, potentially leading to more severe problems. Look for cracks where walls meet the ceiling, separated molding or baseboards, and gaps between floors and walls.
  • Creaking or Cracking Sounds: Unusual creaking or cracking sounds in your home may indicate foundation distress. These noises often result from structural components like beams and joists reacting to shifts in the foundation. Potential causes include seasonal soil moisture changes, foundation settling, and shifts due to expansive soils.
  • Visible Tilt of Building or Chimney: A visibly tilting building or chimney can indicate foundation problems. This often signifies severe issues, as one side of the structure may sink more rapidly than the other. Look for a leaning chimney, sloped floors, and noticeable tilting of the entire building.
  • Moisture Problems: Persistent moisture issues, such as water in your basement or crawl spaces, can worsen foundation problems by contributing to soil expansion and contraction. This can lead to uneven settling and further movement. Signs include damp basement floors, musty odors, and mold or mildew growth.

For Southern California and Arizona homeowners, we offer a free foundation repair checklist to help you identify and address common foundation problems. This comprehensive guide provides practical tips on spotting signs of foundation issues and offers advice on addressing them. Get our free foundation repair guide today to ensure your home stays safe and stable.

Warning Signs

How To Repair Foundation Problems?

To maintain your home’s structural integrity, various repair methods can address foundation issues. These include:

  • Foundation Underpinning: Stabilizes the foundation by extending it to more stable soil.
  • Helical Tiebacks: Reinforces bowing or leaning walls using helical steel shafts.
  • Polyurethane Concrete Lifting: Raises sunken concrete slabs with injected foam.
  • Polyurethane Concrete Void Fill: Fills voids under concrete slabs for added support.
  • Crawl Space Jacks: Lifts and stabilizes sagging floors.
  • Post & Pad Replacement: Replace deteriorated support posts and pads.
  • Seismic Retrofitting: Strengthens homes in earthquake-prone areas with steel bracing and shear walls.
  • Stem Wall Repair: Fixes cracks and damage in stem walls.
  • Moisture Control: Manages moisture around the foundation to prevent soil issues.

Foundation Underpinning

Who Can Help In Identifying And Fixing Foundation Movement?

If you’re experiencing foundation movement and need a reliable solution, Dalinghaus Construction is here to help. With extensive expertise in foundation repair across Southern California, Arizona, and Nevada, our team provides tailored solutions, including inspections, concrete lifting, and crawl space repair, to address all your foundation concerns. Contact Dalinghaus Construction today to schedule your free evaluation!
