Save the wall instead of rebuilding it.
Anchoring systems tie a leaning retaining wall into stable ground beyond the soil that is pushing it, stopping the movement for a fraction of the cost and disruption of demolition.
Let's take the first step toward solid ground.
A local specialist will evaluate your foundation, walk you through the findings, and send a clear estimate. No cost, no pressure.
What to know about retaining wall anchoring systems, and when it's the right call.
A retaining wall fails when the lateral pressure of the retained soil exceeds what the wall can resist, and water is usually the multiplier: saturated backfill weighs more, pushes harder, and lubricates movement. Anchoring changes the contest by giving the wall a grip on ground outside the failure zone. For helical tiebacks, the crew drills through the wall face and rotates a galvanized anchor, steel coated in zinc to resist rust, at a downward angle through the active soil into deep, stable material, logging torque as it advances because torque correlates with holding capacity. For plate and deadman systems, anchors are buried in undisturbed soil behind the slope and connected to the wall with steel rods. Either way, plates on the wall face distribute the load, and tensioning the system puts the wall in equilibrium: the soil pushes, the anchors pull, and the anchors are gripping ground that does not move. Staged retensioning over following seasons, especially dry ones when the clay relaxes, often recovers some of the lean.
The symptoms that usually lead to retaining wall anchoring systems are on the retaining wall repair problem signs page, alongside the other signs that point to the same underlying cause.
How we install retaining wall anchoring systems.
Free evaluation with lean measurements
We measure the wall's lean and bow, assess its structural condition, and check the drainage loading it. Walls too far gone for anchoring are told so directly, with retaining wall repair options instead of false hope.
Anchor system design
Anchor type, locations, angles, and target capacities are planned from the wall's condition, the slope geometry, and where stable ground actually sits.
Install the anchors
Helical tiebacks are screwed through the wall into deep stable soil with torque logged on each one, or plate and deadman anchors are set in undisturbed ground and rodded to the face.
Plate and tension
Wall plates are mounted and the system is tensioned to stop the movement, loading the wall evenly rather than stressing any one section.
Address the water and verify
Drainage contributions are corrected where found, baseline measurements are recorded, and a retensioning schedule is set where straightening over time is the goal.
The wall gets pulled back.
A steel rod runs from a plate on the wall out to a helical anchor set deep in stable soil. Tension the rod and the soil itself holds the wall, and can straighten it over time.

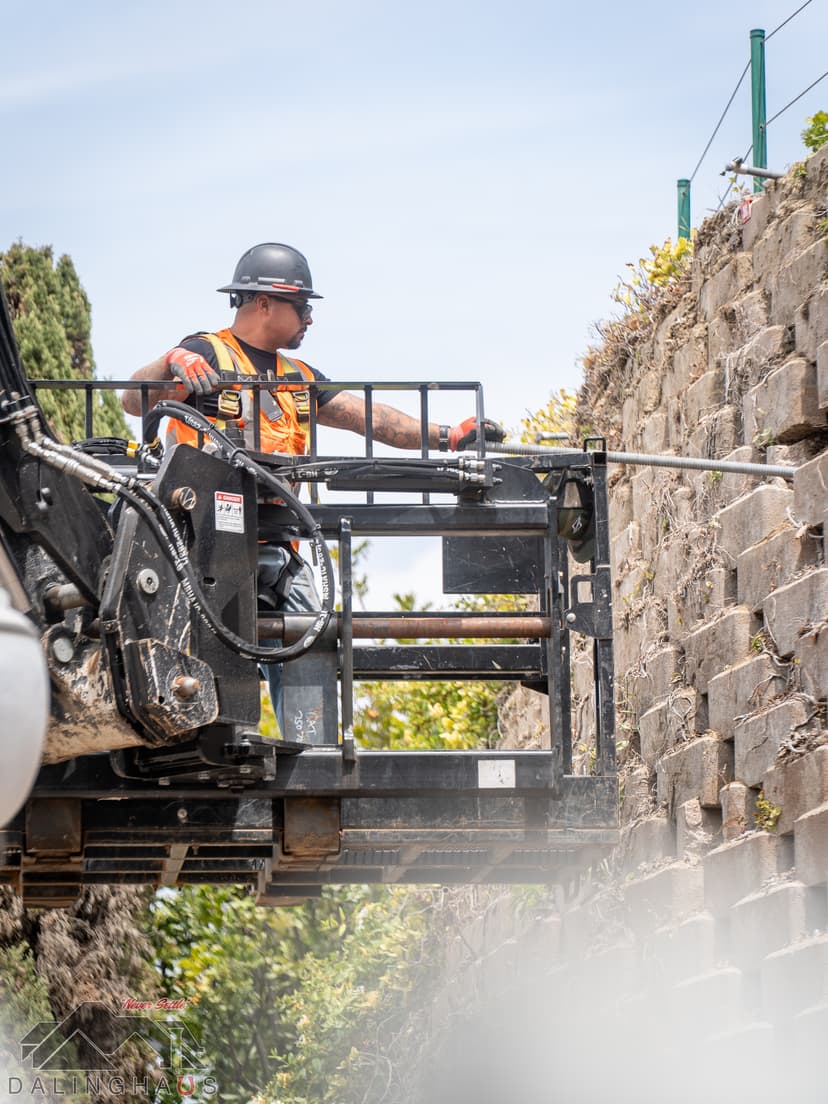

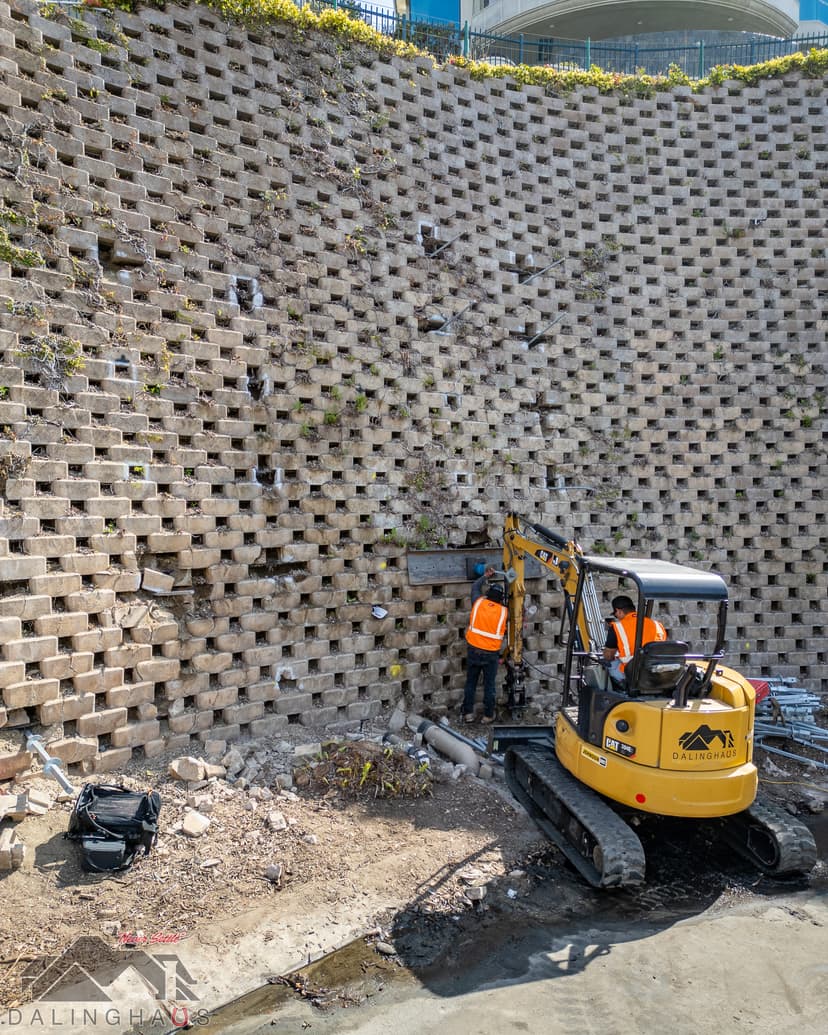

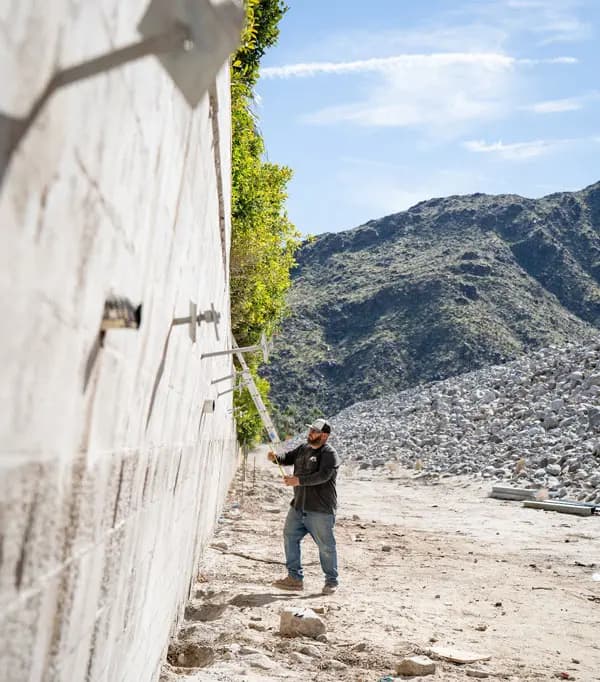

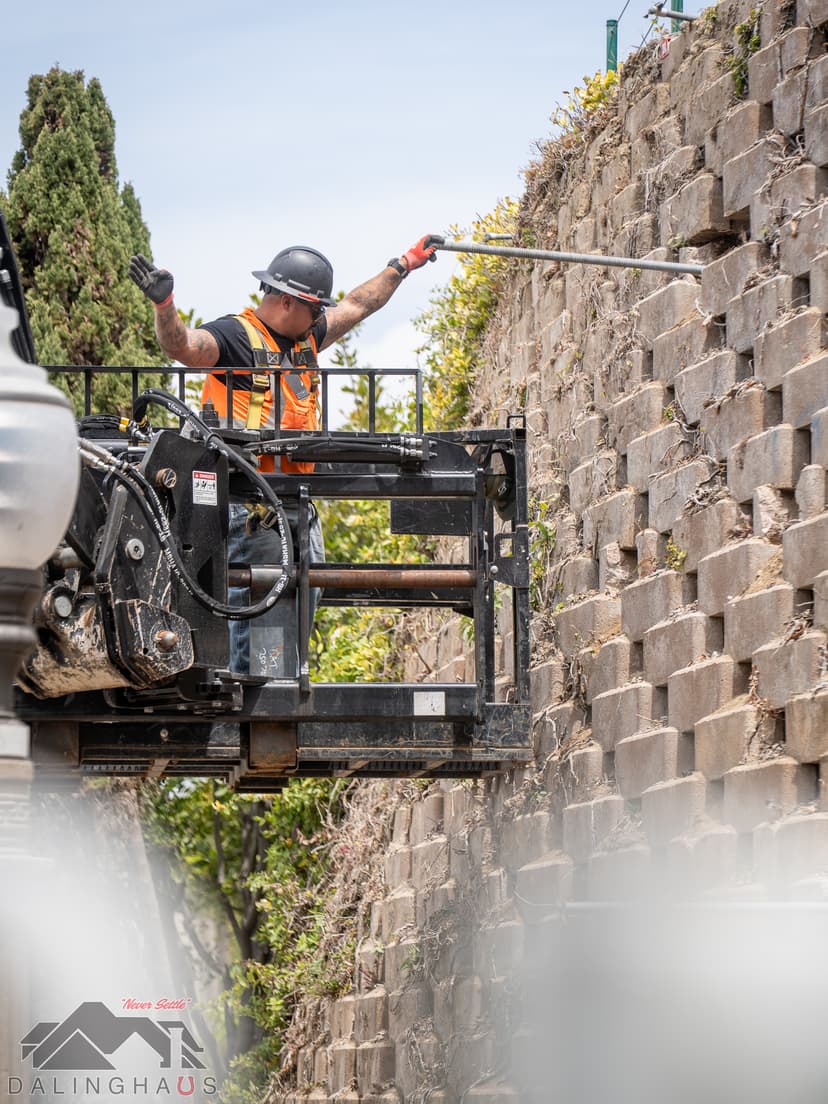

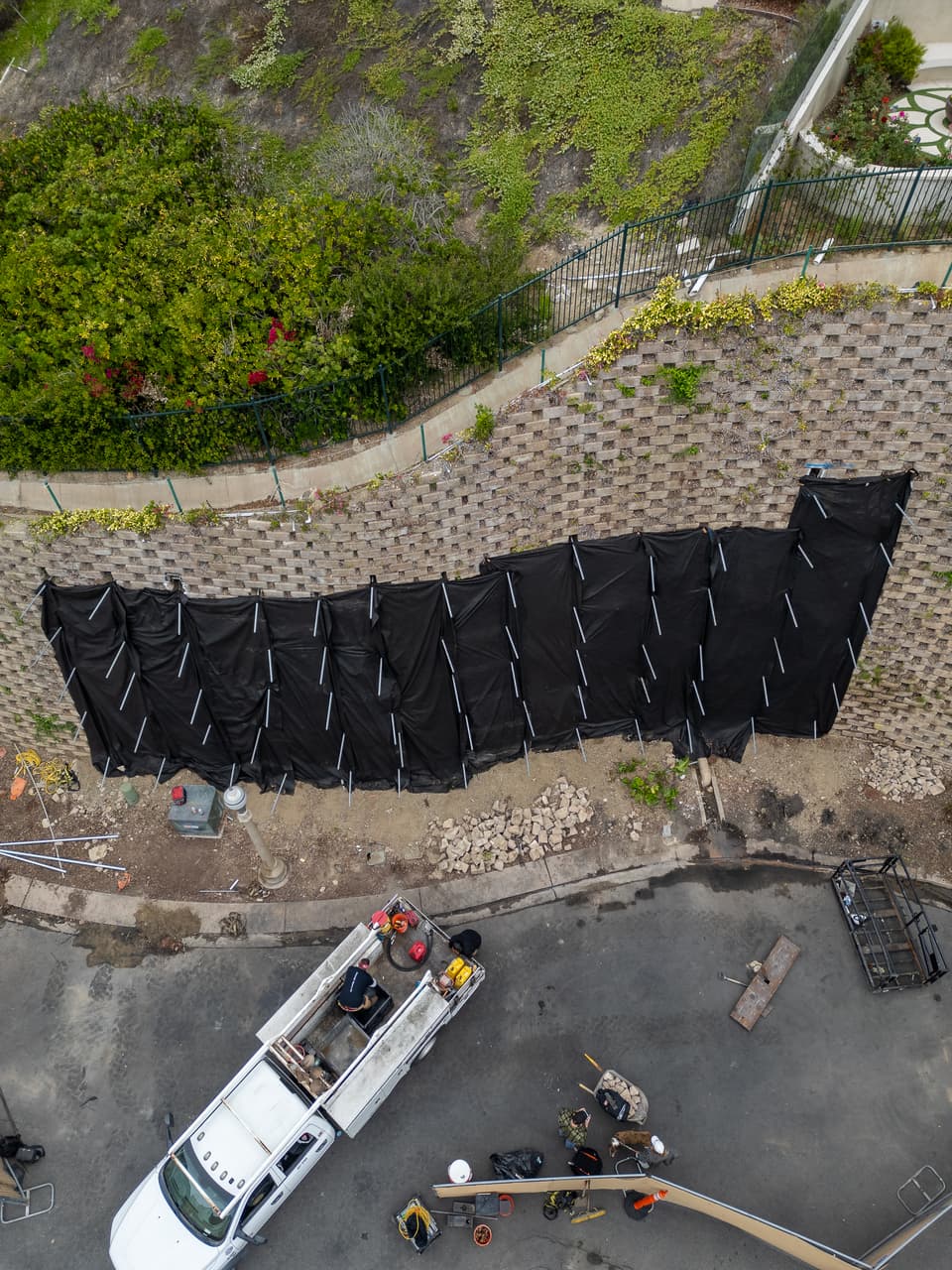

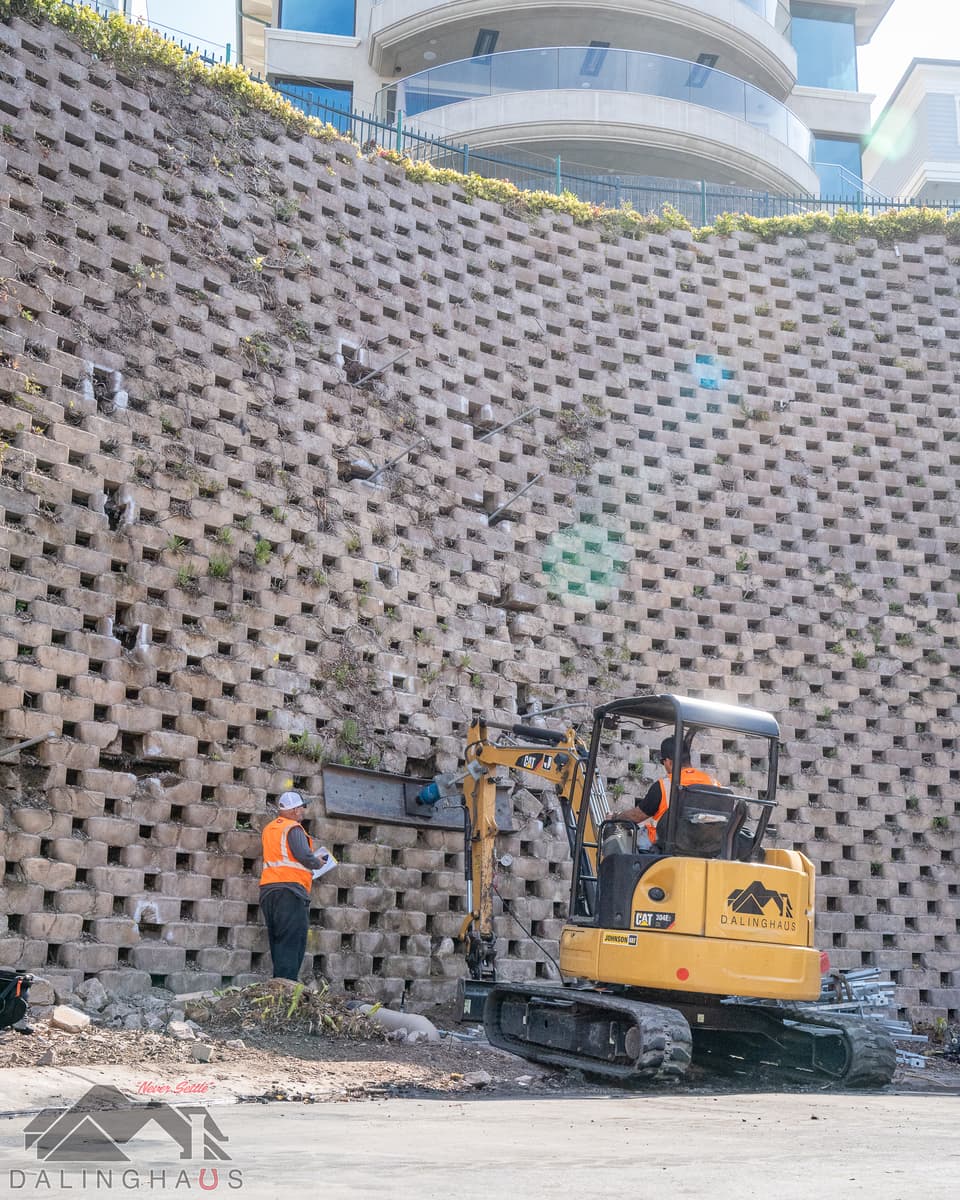

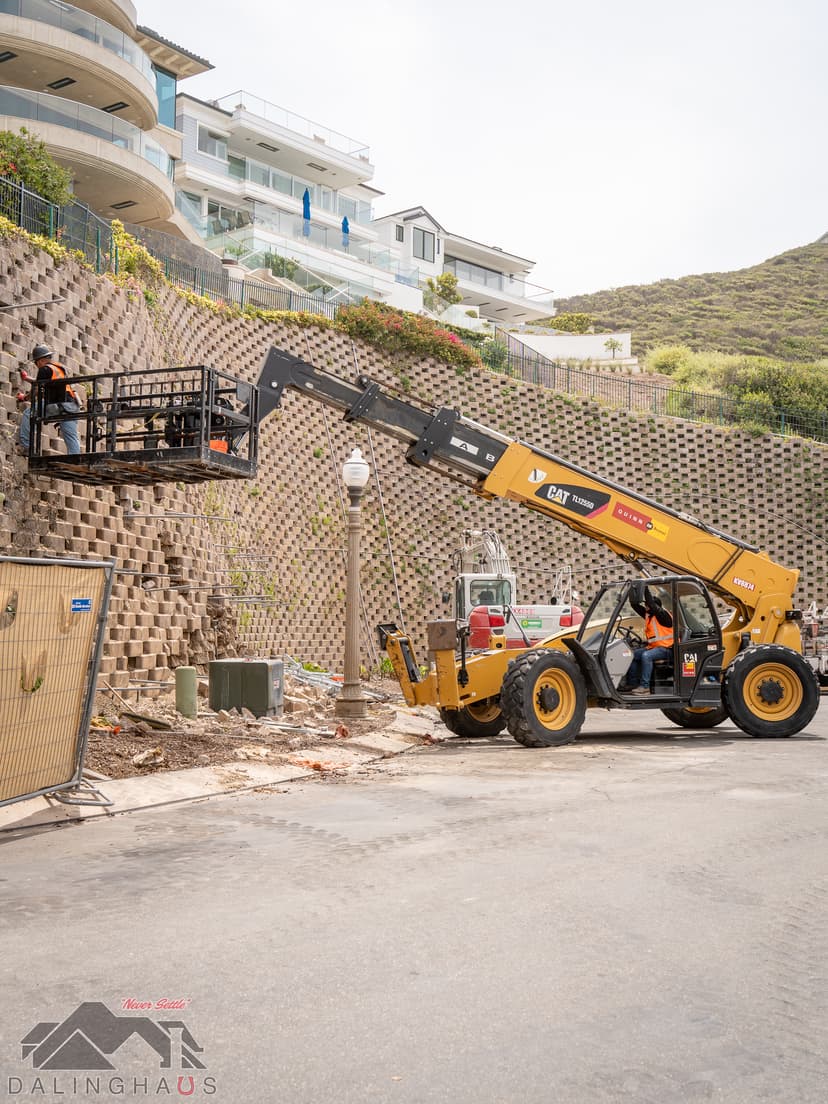

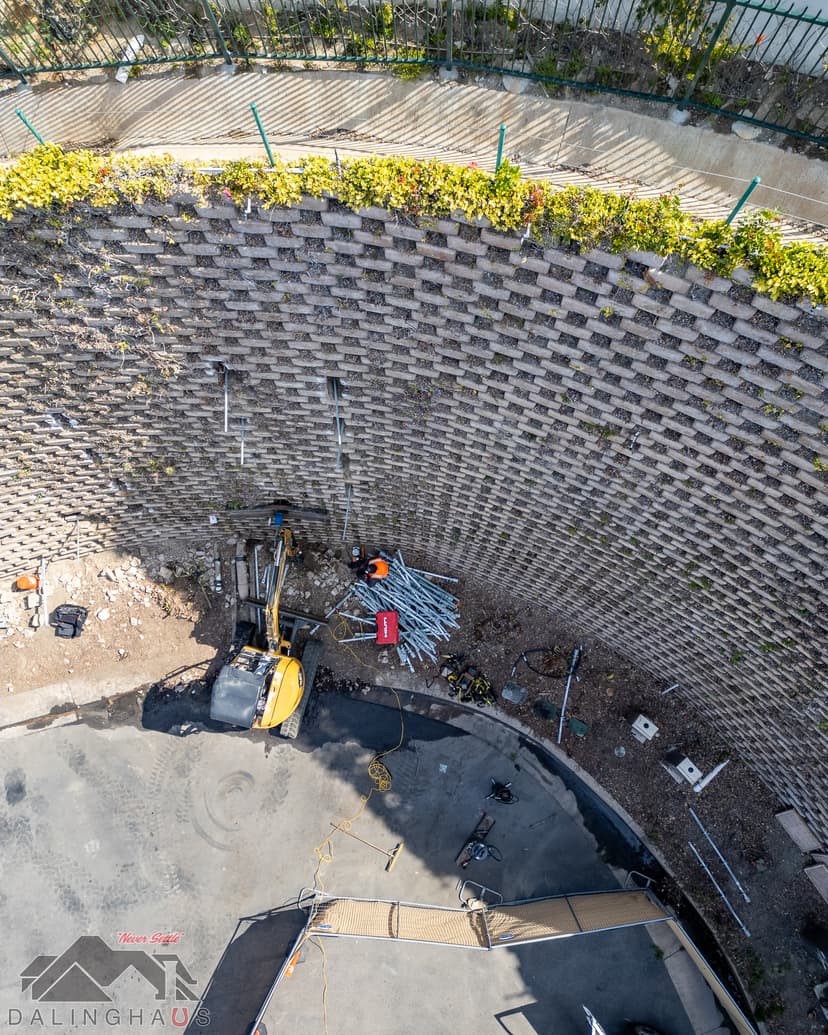

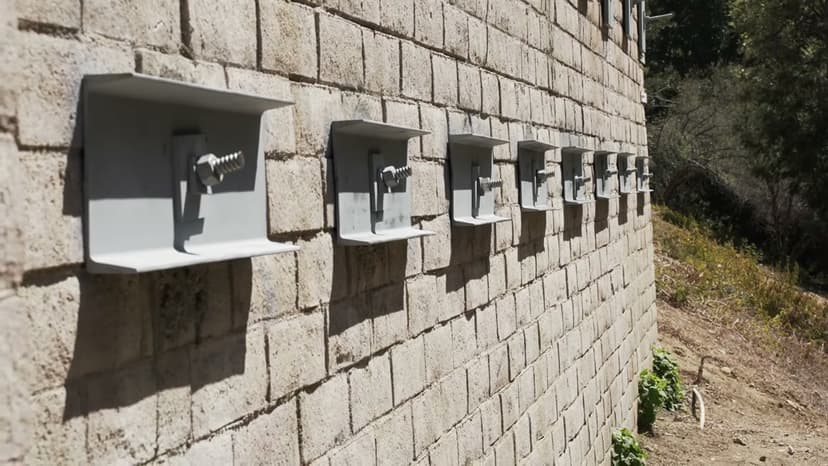

Retaining Wall Anchoring Systems on our job sites.
Photos from our own crews and projects. Swipe or use the arrows to see more.

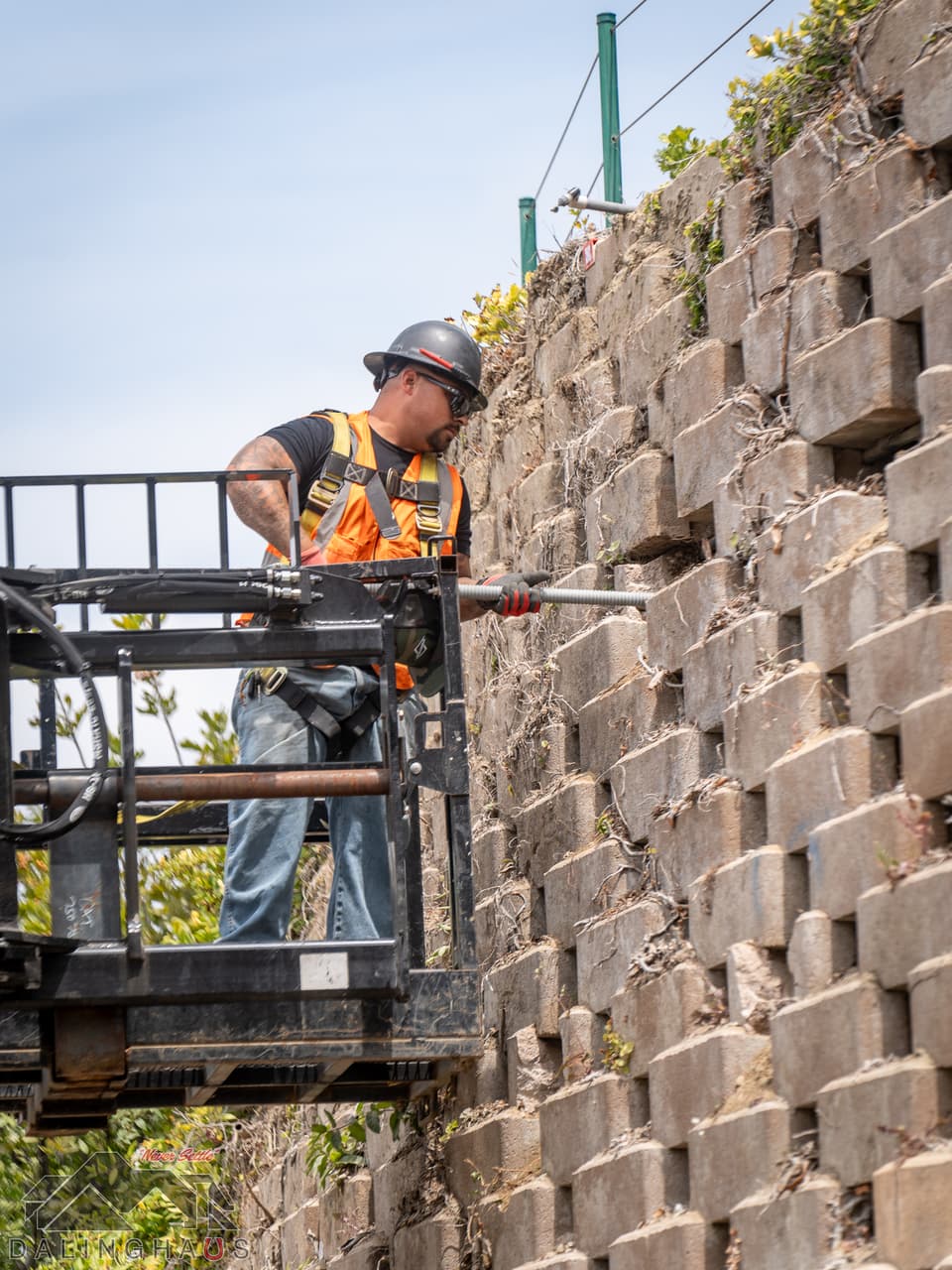

Retaining Wall Anchoring Systems on a real project.
Anchoring systems tie a leaning retaining wall into stable ground beyond the soil that is pushing it, stopping the movement for a fraction of the cost and disruption of demolition.
Care and expertise from a team that's been doing this since 2011.
When the fix is retaining wall anchoring systems, the installer matters as much as the method. Dalinghaus crews handle foundation, concrete, and crawl space work across California, Arizona, and Nevada, and nothing else.
Foundation repair, concrete leveling, and crawl space repair are our entire focus. Not a sideline.
More than 2,000 projects on the clay and desert soils of California, Arizona, and Nevada since 2011.
CSLB License #983851 in California, ROC #330307 in Arizona, and License #0089738 in Nevada. Look us up with the state before we ever set foot on your property.
Warranty terms come in writing with every proposal, and the terms that apply to your job are stated in that job's paperwork. Ask your project specialist during the free evaluation.
Answers to common questions about Retaining Wall Anchoring Systems.
Don't see your question here? Our team is happy to help. Reach out anytime.
It depends on what the wall has left. A wall that is leaning but structurally intact, block unbroken, footing unsheared, can usually be anchored and often partially straightened. A wall that has crushed, sheared, or rotated past safe limits needs rebuilding, and anchoring it would waste your money. The measurements from the free evaluation put your wall on one side of that line, and we tell you which.
