Tie the wall to ground that is not pushing it.
Wall anchors run steel rods from the stressed wall out to earth anchors set in stable soil, giving the wall something to hold onto besides hope, and giving us a way to pull it back over time.
Let's take the first step toward solid ground.
A local specialist will evaluate your foundation, walk you through the findings, and send a clear estimate. No cost, no pressure.
What to know about wall anchors, and when it's the right call.
The physics is a tug of war with the ground on both ends. Swollen, saturated clay pushes the wall inward from one side. The anchor system answers by gripping soil far enough from the wall to be outside that pressure bulb, soil that is stable and staying put. The crew augers down, drilling with a screw type bit, to place each earth anchor in that undisturbed ground, drives a steel rod from the wall out to it through a small drilled opening, and mounts a steel plate against the inside face of the wall. Tensioning the rod clamps the wall between the interior plate and the buried anchor, and the wall stops moving because any further bowing would have to drag the anchor through stable earth. Over the following seasons, the rods can be retightened in small steps, taking advantage of dry periods when the clay relaxes to coax the wall back toward plumb.
The symptoms that usually lead to wall anchors are on the foundation repair problem signs page, alongside the other signs that point to the same underlying cause.
How we install wall anchors.
Free evaluation with deflection measurements
We measure how far the wall has moved, assess the soil and drainage feeding the pressure, and confirm the yard offers room to set anchors in stable ground. Walls or sites that do not fit get pointed to I-beam bracing or carbon fiber instead.
Anchor layout
Anchor locations and spacing are planned from the deflection map so the wall is held evenly along its stressed length.
Set the earth anchors
Small excavations or augered holes place each anchor in undisturbed soil beyond the pressure zone, with minimal disturbance to the yard.
Connect and tension
Steel rods are run from the wall to the anchors, interior wall plates are mounted, and each rod is tensioned to stop the movement without overstressing the wall.
Verify and schedule adjustment
Baseline measurements are recorded, and where straightening is the goal, a retightening schedule is set so the wall can be drawn back gradually and safely.
The wall gets pulled back.

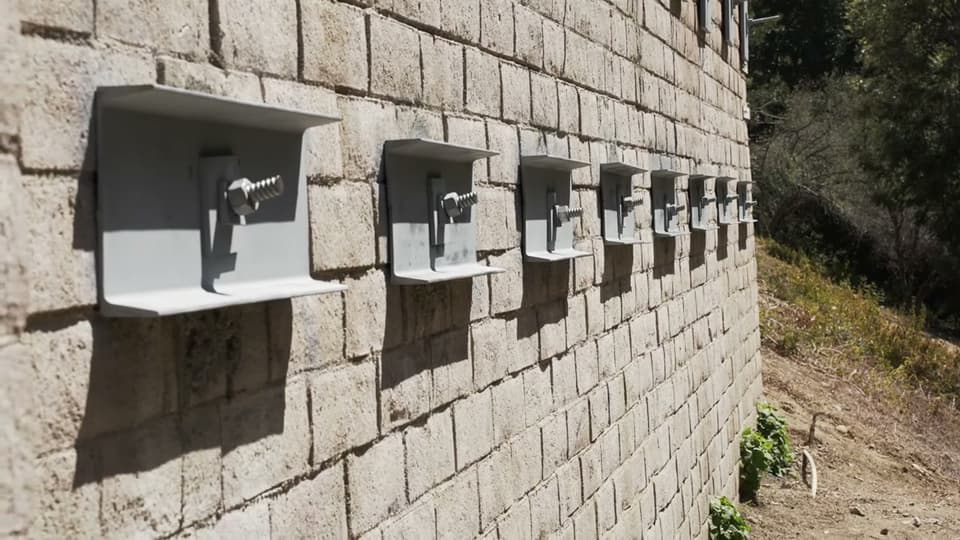

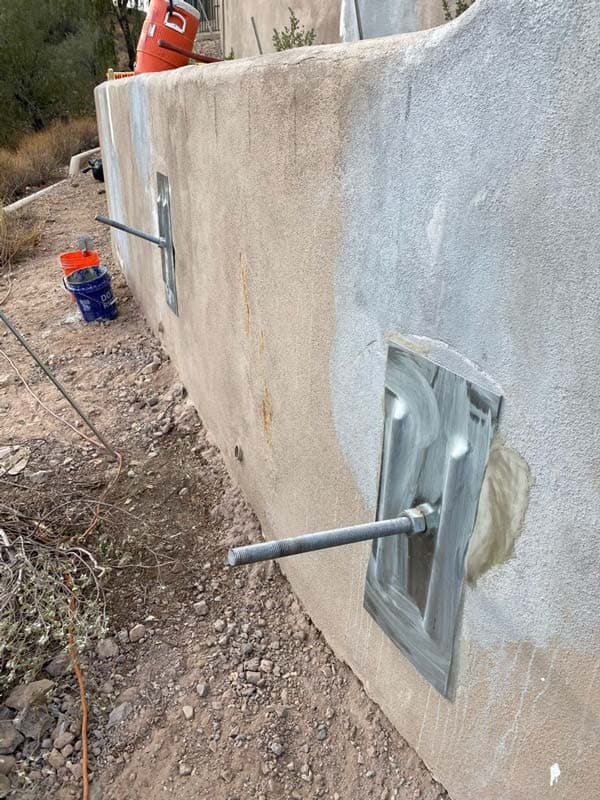

A steel rod runs from a plate on the wall out to a helical anchor set deep in stable soil. Tension the rod and the soil itself holds the wall, and can straighten it over time.
Wall Anchors on a real project.
Wall anchors run steel rods from the stressed wall out to earth anchors set in stable soil, giving the wall something to hold onto besides hope, and giving us a way to pull it back over time.
Care and expertise from a team that's been doing this since 2011.
When the fix is wall anchors, the installer matters as much as the method. Dalinghaus crews handle foundation, concrete, and crawl space work across California, Arizona, and Nevada, and nothing else.
Foundation repair, concrete leveling, and crawl space repair are our entire focus. Not a sideline.
More than 2,000 projects on the clay and desert soils of California, Arizona, and Nevada since 2011.
CSLB License #983851 in California, ROC #330307 in Arizona, and License #0089738 in Nevada. Look us up with the state before we ever set foot on your property.
Warranty terms come in writing with every proposal, and the terms that apply to your job are stated in that job's paperwork. Ask your project specialist during the free evaluation.
Answers to common questions about Wall Anchors.
Don't see your question here? Our team is happy to help. Reach out anytime.
Often, yes, gradually. The rods are tensioned in stages, and dry seasons, when the clay outside relaxes, are the opportunity to gain ground. How much recovery is possible depends on the wall's construction and how far it moved. Stopping the movement is the objective; straightening is pursued as far as the wall safely allows.
